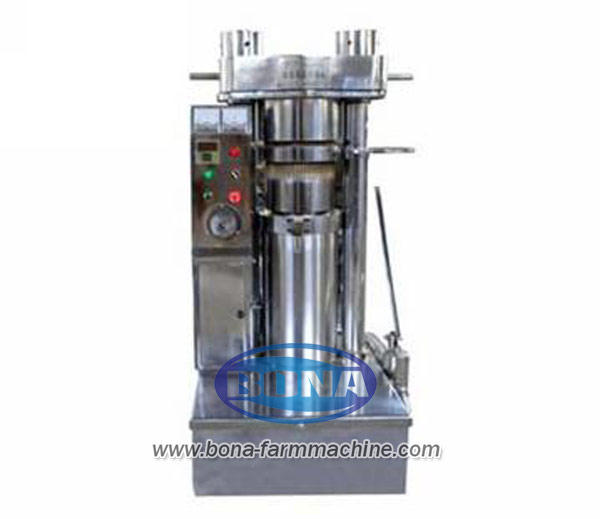

Hydraulic Oil Press

  • Type: QYZ-410
  • Main Motor: 1.5kw
  • Motor of Heating:4kw
  • Weight: 1500kg
  • Working Pressure: 45MPa
  • Pushing Force of Working:120T
  • Working Stroke of Piston: 500mm

We're here to help:

Easy ways to get the answers you need.

Download Product Manual (PDF file)

(※ Click this button to inquiry)
Follow Us :
  • Hydraulic Oil Press
  • Hydraulic Oil Press
  • Hydraulic Oil Press

Which can press sesame, olive, cocoa beans, walnuts, almonds, and other high oil crops.

■ Specifications

 1. It is this is a kind of oil press with small capacity

2. Which can press sesame, olive, cocoa beans, walnuts, almonds, and other high oil crops.

3. This peanut seeds oil press is very suitable for family using and small scale oil factories.


4. It is can press 7-8 kg per time (12 minutes), that is to say you can process about 50kg/h .


5. After pressed, the oil is very pure with good smell, can be edible for people directly.


6. It is durable using, which is the least to change the wearing parts.


7. It is made of stainless steel , so the oil can reach the healthy standard .


8. Which is good for people's health.

 Factory's proposing products :press oil machine,sesame oil press machine,automatic oil press machine,corn oil press machine,soybean oil press machine,edible oil press machine.


■ Technical Data
Type QYZ-410 QYZ---260 QYZ-500
Working Pressure 45MPa 55MPa 40MPa
Pushing Force of Working 120T 190t 300t
Inner Diameter of Pressing Barrel 410mm 230mm 500mm
Working Stroke of Piston 500mm 300mm 700mm
Capacity of Pressing Barrel 80kg 8kg 200kg
Average Preformance 80kg/h 45kg/h 200kg/h
Main Motor 1.5kw 1.5kw 4kw
Motor of Heating 4kw 2kw 4kw
Oil Cylinder of Pre--pressing 10MPa / 10MPa
Weight 1500kg 850kg 2800kg
